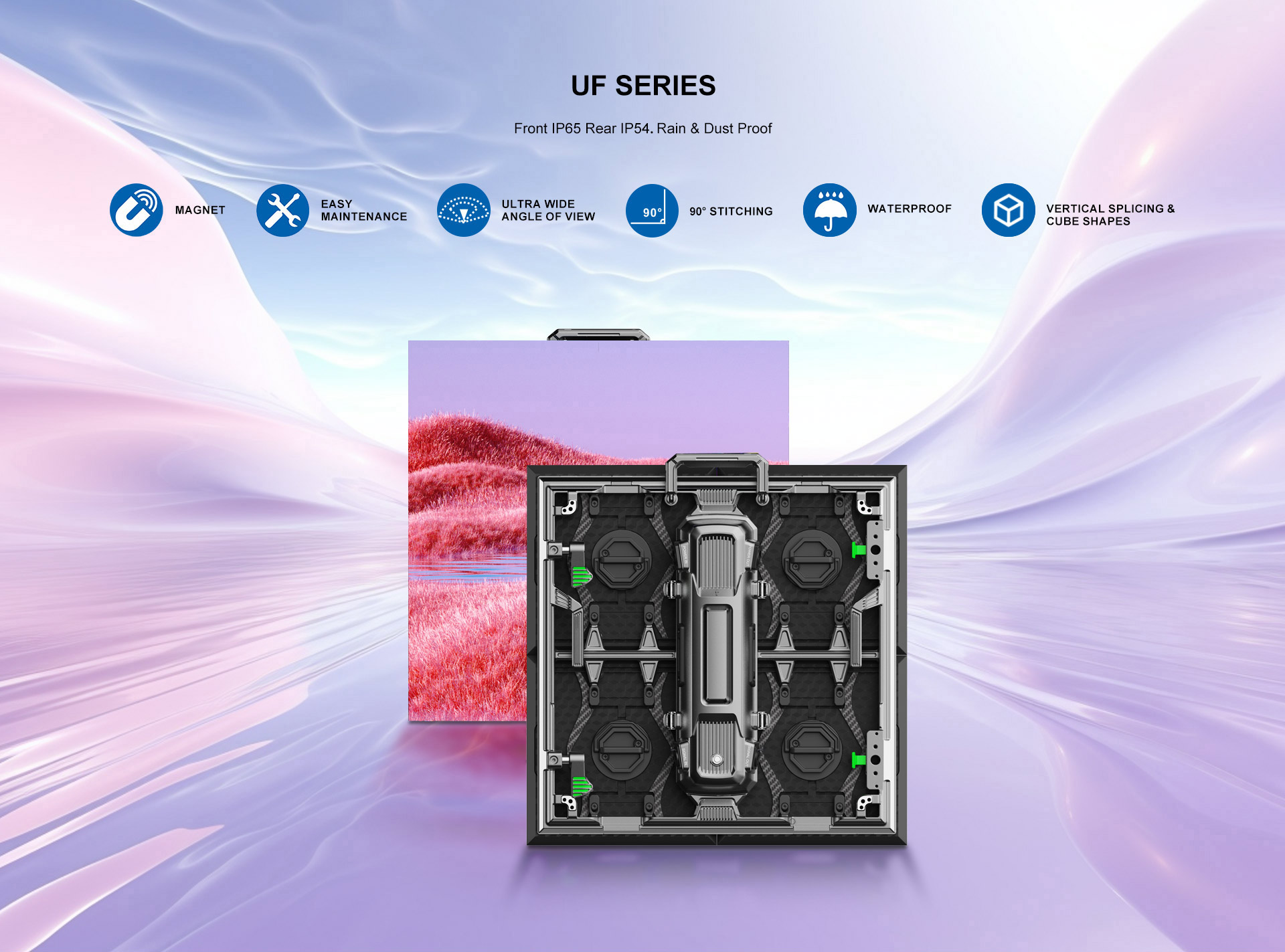

UF SERIES
Pixel Pitch: 2.6/2.9/3.9/4.8 mm Module size: 250x250 mm Cabinet size:500x500/500x1000x80 Brightness: 1200-5500nit Refresh Rate: 3840/7680Hz
| Indoor | Outdoor | ||||||
| Product | P2.604 | P2.976 | P3.91 | P2.604 | P2.976 | P3.91 | P4.81 |
| Pitch | 2.604mm | 2.976mm | 3.91mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Density (pixels/m2) | 147456 | 112896 | 65536 | 147456 | 112896 | 65536 | 43264 |
| LED Type | SMD1515 | SMD2121 | SMD2121 | SMD1415 | SMD1921 | SMD1921 | SMD1921 |
| Brightness | 1000nits | 1000 nits | 1200 nits | 5000 nits | 5000 nits | 5000 nits | 5500 nits |
| Scan Method | 1/32 | 1/28 | 1/16 | 1/24 | 1/21 | 1/16 | 1/13 |
| Cabinet Size | 500*500*75mm | 500*500*75mm | |||||
| Module Size | 250*250mm | 250*250mm | |||||
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | |||||
| Cabinet Weight | 7.5kg | 8kg | |||||
| Protection Level | IP34 | IP65 | |||||
| Cabinet Maintenance | Front&Rear Service | Front&Rear Service | |||||
| Max Power Consumption | 600 w/m2 | 800 w/m2 | 700 w/m2 | 900w/m2 | 900w/m2 | 900 w/m2 | 900 w/m2 |
| Average Power Consumption | 200 w/m2 | 270 w/m2 | 240 w/m2 | 350w/m2 | 350w/m2 | 350 w/m2 | 350 w/m2 |
| Refresh Rate (Hz) | 2880-3840HZ | ||||||
| Grey Scale | 16 bit | ||||||
| Viewing Angle | H160o,V160° | H160o,V140° | H160o,V160° | H160o,V140° | H140o,V140° | H140o,V140° | |
| Curve (Optional) | -15°~+15° | ||||||
| Voltage | AC100~240V(50-63Hz) | ||||||
| Working Temperature | -30°C-+65°C | ||||||
| Working Humidity | 10%-90%RH | ||||||
| Color Temperature | 6500-9500K | ||||||
| Certifications | EMC/CE/ROHS/CCC/FCC/ISO | ||||||
