FS Series
960×960mm Series Magnesium Alloy LED Display Dual Service Energy Saving LED Display-50% Power&Cost Saving High protection aluminum chassis panel high refresh Fixed Installation, Rental 26kg for cabinet
| SMD | ||||
| Product | p5 | P6.67 | P8 | P10 |
| Pitch | 5mm | 6.67mm | 8mm | 10mm |
| Density (pixels/m) | 40000 | 20736 | 15625 | 10000 |
| LED Type | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Brightness | 6000nits | 6000nits | 6000 nits | 6000 nits |
| Scan Method | 1/5 | 1/6 | 1/5 | 1/2 |

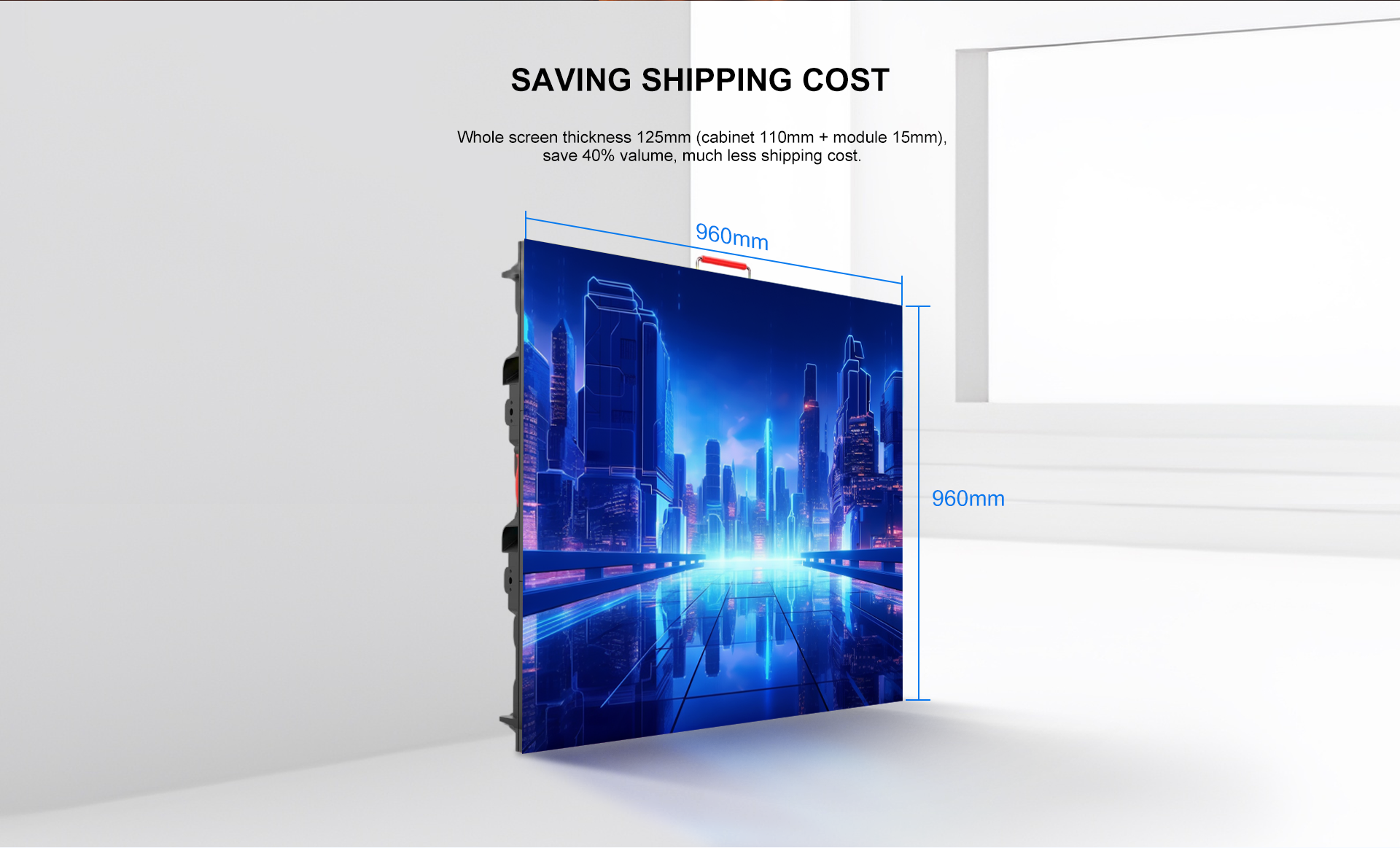

| Cabinet Size | W960*H960*T85mm | |||
| Module Size | 320*160mm | |||
| Cabinet Material | Diecasting Aluminum | |||
| Cabinet Weight | 36 kg | 36 | 36 kg | 36 kg |
| Protection Level | Front&RearlP65 | |||
| Cabinet Maintenance | Front & Re ar Service | |||
| Max Power Consumption | 1000 w/ m | 1000w/ m | 1000 w/ m | |
| Average Power Consumption | 350 w/m | 350 w/ m | 350 w/m | |
| Refresh Rate (Hz) | 2880-3840HZ | |||
| Grey Scale | 16 bit | |||
| Viewing Angle | H140°, V140° | H120°, V120° | ||
| Voltage | AC100~240V(50-63Hz) | |||
| Working Temperature | _40°C- +70°C | |||
| Working Humidity | 10%-90%RH | |||
| Color Temperature | 6500-9500K | |||
| Certifications | EMC/CE/ROHS/BIS/CCC/FCC/ISO | |||
